Key features:

• Flexibility and comfort: small diameter insertion tubes to reduce patient discomfort during examinations.

Spec:

• Technical data:
  1. Field of view: 110°
  ★2. Insertion length: ≥410mm
  3. Insertion outer diameter: φ5mm
  4. Working distance 7mm
  5. Broken wire: ≤8
  ★6. Resolution: ≥4.42p/mm

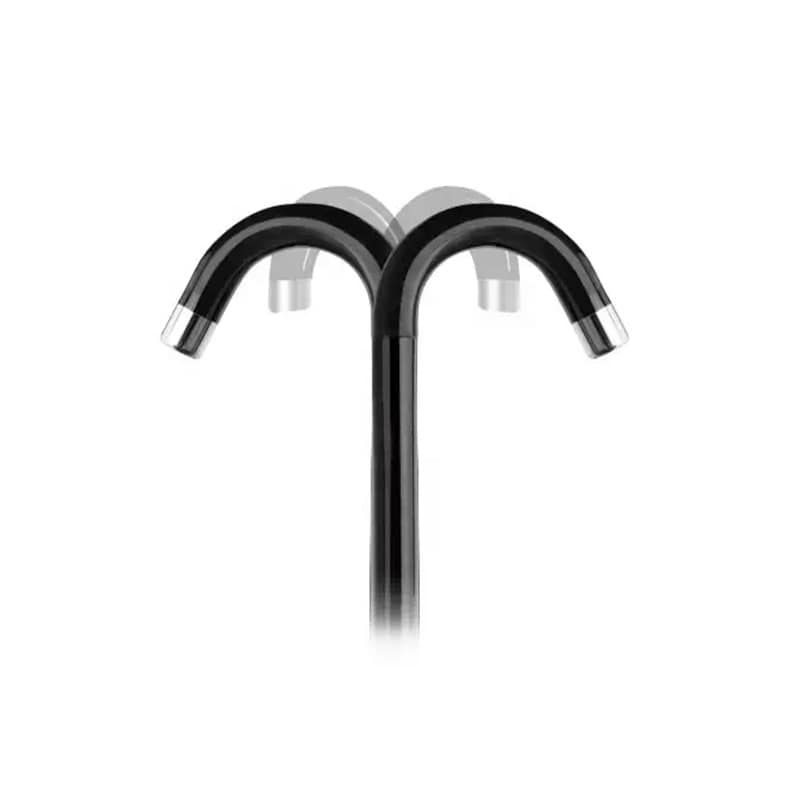

  7. Bending angle: upper: 160°; lower: 130°
  8. Observation depth of field: 3~50mm
  9. Minimum instrument channel inner diameter: ≥φ2.0mm
  ★10. Can be connected to light transmitting cable
  ★11. Internationally C-type optical interface design, compatible with any brands of camera systems
  ★12. Fully waterproof and full body immersion.
  Can withstand low temperature plasma sterilization and ethylene oxide sterilization



  Packing list:
  1 Fiber laryngoscope 1 piece
  2 Suction button assembly 4 pieces
  3 Cleaning brush 2 pieces
  4 Water leak detector 1 piece
  5 Leak detection device connection assembly 1 piece
  6 Plug-in jaw sealing valve 2 pieces
  7 Head end protection cap 1 piece
  8 Ventilation cap 1 piece
  9 Light guide adapter 1 piece
